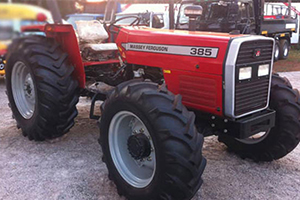

Massey Ferguson MF 385 2wd, 85hp Tractor | |
MF 385 2WD PERFORMANCE: | |
Max. Engine power @ 2,200 rpm Max. Torque @ 1,400 rpm Max. PTO power @ Rated Engine rpm*Certified to BS AU 141a ** Manufacture’s estimate |
85 hp* 291 Nm 70 hp** |
MF 385 2WD ENGINE: Make/Type No. of Cylinders Injection Bore Stroke Capacity Aspiration Compression Ratio Starting Aid Throttle Control Cooling Air Cleaner Type Air Pre-Cleaner Fuel Filter ExhaustOil Cooler |
Perkins / 4.41 4 Direct 101 mm 127 mm 4.1 Natural 15.3:1 Thermostart Hand and Foot Water Oil Bath Over Bonnet, Air Swirl Dual High Capacity Vertical; Muffler Under Bonnet Water Cooled |
MF 385 2WD ELECTRICS: | |
Voltage Battery Starter Alternator |
12V, Negative Earth 96 Ah 2.8 KW 45 Amp. |
MF 385 2WD CLUTCH: | |
Type Diameter Lining Material |
Dual 305×254 mm Cerametallic |
MF 385 2WD POWER TAKE – OFF: | |
Type Engine Speed @ 540 PTO rpm Shaft Diameter No. of Splines |
Live 1,789 rpm 35 mm 6 |
MF 385 2WD TYRES: | |
Front 7.50-16 (6PR) Rear 18.4 / 15-30 (6PR) |
7.50-16 (6PR) 18.4 / 15-30 (6PR) |
MF 385 2WD TRACK ADJUSTMENT: | |
Front Axle Rear Axle |
1,271 – 1,881 mm 1,423 – 2,134 mm |
MF 385 2WD STEERING: | |
Type | Hydrostatic |
MF 385 2WD TRANSMISSION: | |
Type Number of Gears |
Sliding spur 8 Forward, 2 Reverse |
Road speed @ 2,200 Engine rpm with 18.4/15-30 Rear Tyres |
Road speed @ 2,200 Engine rpm with 18.4/15-30 Rear Tyres |
Gear Speed Forward 1 Forward 2 Forward 3 Forward 4 Forward 5 Forward 6 Forward 7 Forward 8 Reverse 1 Reverse 2 |
(km/hr) 2.7 3.7 5.1 6.8 10.4 15.2 20.8 27.9 3.5 14.1 |
MF 385 2WD HYDRAULICS: | |
Function
Pump Type Maximum Oil Flow Maximum Lift Capacity Lower links |
Draft Control, Position Control, Response Control, Constant Pumping 4 Piston, Ferguson Pump16.7 liters / min 21 MPa at normal operating temperature2,145 kgCategory I & II with Interchangeable balls |
MF 385 2WD FRONT AXLE: | |
Axle Type
Brake Type |
Straddle with epicyclic reduction unit Oil Immersed, Multi-Disc Pendant 1774 sq.cm Hydraulic Hand Lever Operated |
MF 385 2WD REAR AXLE & BRAKES: | |
Axle Type
Brake Type |
Straddle with epicyclic Reduction Oil immersed, multi – disc 1,774 Sq. cm. Hydraulic Hand Lever Operated |
MF 385 2WD CAPACITIES: | |
Fuel Tank Engine Sump Cooling System Hydraulic System Hydrostatic Steering Reservoir Oil Bath Air Cleaner |
108.0 lit 7.5 lit 15.2 lit 36.0 lit 2 lit0.7 lit |
MF 385 2WD INSTRUMENTATION: | |
Gauges
Warming Lights |
Tachometer, Hourmeter, Fuel Level, Battery Condition & Water TemperatureDirection Indicators Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights |
MF 385 2WD WEIGHT & DIMENSIONS: | |
with 7.50-16 Front & 18.4/15-30 Rear Wheel and with full Fuel, Oil & Water |
with 7.50-16 Front & 18.4/15-30 Rear Wheel and with full Fuel, Oil & Water |
Weight Gross WeightDimensions Wheel Base Overall Length Width (minimum)Height Over Exhaust Over Steering WheelTurning Circle Without BrakesGround Clearance Under Gearbox |
2,440 kg
2,286 mm 2,485 mm 7,502 mm 501 mm |
MF 385 2WD STANDARD EQUIPMENT: | |
Weight Frame without Weights Standard Tool Box with Set of Tools Top Link Top Link End Cat-I & II Balls Check Chains Chain Stablisers Spring Suspension Seat Flat Top Fenders & Operator’s Manual |
Weight Frame without Weights Standard Tool Box with Set of Tools Top Link Top Link End Cat-I & II Balls Check Chains Chain Stablisers Spring Suspension Seat Flat Top Fenders & Operator’s Manual |
MF 385 2WD OPTIONAL EQUIPMENT / ACCESSORIES: | |
Cabin (A/C or Non-A/C) Sun Canopy (ROPS Style) Front Ballast/Weights Adjustible Pintle Hook, Simple Pintle Hook Swinging Drawbar, 9 Hole Drawbar Auto Hitch Hydraulic Control Outlets/Spool Valves External Electric Switch PTO Belt Pulley & International Warranty Tool Kit |
Cabin (A/C or Non-A/C) Sun Canopy (ROPS Style) Front Ballast/Weights Adjustible Pintle Hook, Simple Pintle Hook Swinging Drawbar, 9 Hole Drawbar Auto Hitch Hydraulic Control Outlets/Spool Valves External Electric Switch PTO Belt Pulley & International Warranty Tool Kit |
