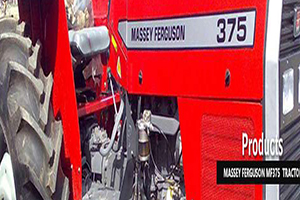

Massey Ferguson MF 375 (2wd, 75hp) Tractor | |
MF 375 PERFORMANCE:
Engine Power at 2200 rpm |
75 (B.S) HP 290 Nm 69.5 hp*63.0 hp |
* Engine certified to BS.AU 141a: (1971) | * Engine certified to BS.AU 141a: (1971) |
MF 375 ENGINE: Type No. of Cylinders Injection Bore Stroke Capacity Aspiration Compression Ratio Starting Aid Throttle Control Cooling Air Cleaner Type Air pre-cleaner Fuel Filter Exhaust |
Perkins / Diesel / 4.248 4 Direct 101mm 127 mm (5.0 in) 4.07 Liter Natural 16:1 Thermostart Hand and Foot Water Oil Bath Over-bonnet, Centrifugal Dual, High Capacity Vertical, Muffler under Bonnet |
Note: This is a premium heavy duty engine with tuffrided crankshaft for longer life in adverse conditions. |
|
MF 375 ELECTRICS:
Voltage Safety Start |
12 V, Negative Earth 110 Ah 2.8 kW 45 Amp Head Lights, Side Lights, Brake Light, Direction Indicators, Rear Work Lamp Transmission & PTO Horn |
MF 375 CLUTCH: | |
Type Diameter Lining Material |
Dual 305 x 254 mm Cerametallic |
MF 375 POWER TAKE – OFF: | |
Type SpeedShaft Diameter No. of Splines |
Live PTO @ 540 rev/min is 1789 engine rev/min Single Speed 35 mm (1.375 in) 6 |
MF 375 TYRES: | |
Front Rear |
7.50-16 (6PR) 16.9/14-30 (6PR) |
MF 375 TRANSMISSION: | |
Type No. of Gears Road Speed @ 2000 engine rpm with 16.9/14×30 rear tyres Gear Forward 1 (first low) Forward 2 Forward 3 Forward 4 Forward 5 (first high) Forward 6 Forward 7 Forward 8 Reverse 1 (low) Reverse 2 (high) |
Sliding Spur 8 Forward, 2 ReverseSpeed (km/h) 2.3 3.4 4.7 6.3 9.3 13.6 18.6 25.0 3.2 12.7 |
MF 375 HYDRAULICS: | |
Functions
Pump Type Oil Flow Max. Lift Capacity |
Draft Control, Piston Control, Response Control, Constant Pumping Reciprocating Ferguson Pump 16.7 litre/min 21.2 MPa at normal operating temperature 2145 Kg with Cat I & II Interchangeable Balls |
MF 375 STEERING: | |
Type Steering Wheel |
Power Fixed, Padded |
MF 375 FRONT AXLE: | |
Type | Heavy Duty Box Section, Adjustable |
MF 375 REAR AXLE & BRAKES: | |
Axle Type Brake Type |
Straddle with epicyclic reduction unit Oil Immersed, Multi-Disc Pendant 1774 sq.cm Hydraulic Hand Lever Operated |
MF 375 TRACK ADJUSTMENT: | |
Front: Rear Pressed: |
1271 – 1881 mm 1423 – 2134 mm (56 – 84 in) |
MF 375 INSTRUMENTATION: | |
Gauges Warning Lights |
Tachometer/Hourmeter, Fuel Level, Battery Level, Water Temperature Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brakes Lights & Auxiliary socket |
MF 375 WEIGHT & DIMENSIONS: | |
Weight Gross WeightDimensions Wheel base Overall Length Width – Min.Height Over Exhaust Over Steering WheelTurning Circle With brakes Without brakesGround Clearance (under Gear Box) |
2355 Kg
2170 mm 2485 mm 7260 mm 465 mm |
MF 375 CAPACITIES: | |
Fuel Tank Engine Sump Cooling System Hydraulic System Hydrostatic Steering reservoir Oil bath air cleaner Brake Oil |
108.0 liter 0.7 liter |
MF 375 STANDARD EQUIPMENT: | |
Weight Frame without Weights, Standard Tool Box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Stabiliser Chains, Spring Suspension Seat, Flat Top Fenders & Operator’s Manual |
