    MF 260

    MF 260

    Specifications

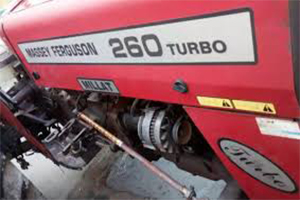

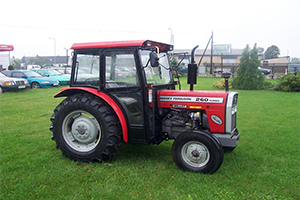

    Massey Ferguson MF 260 (2wd, 60hp) Tractor
    MF 260 PERFORMANCE:

    Engine HP @ 2250 RPM
    Max. Torque @ 1600 RPM
    Max. P.T.O Power @ rated Engine Speed
    *Certified to BS AU 141a
    * * Manufacturer’s Estimate

    		 60 (BS)*
    212 Nm
    48 hp**
    MF 260 ENGINE:

    Make/Type
    No. of Cylinders
    Injection
    Bore
    Stroke
    Capacity
    Aspiration
    Compression Ratio
    Starting Aid
    Throttle Control
    Cooling
    Air Cleaner Type
    Air pre-cleaner
    Fuel Filter
    Exhaust
    Oil Cooler

    		 Perkins/T3.1524
    3
    Direct Injection
    91.4 mm
    127 mm (5.0 in)
    2.5 Liter (152.7 Cu. Ins.) Turbo
    16.5:1
    Thermostat
    Hand and Foot
    Water
    Oil Bath
    Over-bonnet air swirl
    Dual High Capacity
    Vertical
    Air coated, Fin Type
    MF 260 CLUTCH:
    Type
    Diameter

    Dual
    305 x 254 mm (12 x 10 in)
    MF 260 TRANSMISSION:

    Type
    Number of Gears
    Road Speed at 2250 engine rpm with 14-/13-28 rear tyres
    Gear
    Forward 1
    Forward 2
    Forward 3
    Forward 4
    Forward 5
    Forward 6
    Forward 7
    Forward 8
    Reverse 1
    Reverse 2

    		 Sliding spur
    8 Forward, 2 ReverseSpeed (kph)2.7
    3.9
    5.3
    7.2
    10.6
    15.6
    21.3
    28.7
    3.6
    14.5
    MF 260 POWER TAKE – OFF:
    Type
    Engine Speed @ 540 PTO rpm
    Shaft Diameter
    No. of Splines    		 Live
    1789 rpm
    35 mm (1.375 in)
    6
    MF 260 HYDRAULICS:
    FunctionsPump Type
    Maximum Oil Flow
    Maximum PressureMax. lift capacity with lower links Horizontal lower links    		 Draft Control
    Position Control
    Response Control
    Constant PumpingReciprocating Ferguson Pump
    16 liters/min. (3.52 lmp.gal/min)
    19.2 Mpa (192.5 bars) at normal operating temperature
    1415 Kg (3120 lbs.)
    Category 1 & 2 Interchangeable Balls
    MF 260 FRONT AXLE:
    Type    		 Box Section, Adjustable
    MF 260 STEERING:
    Type : Manual
        MF 260 REAR AXLE AND BRAKES:
    Axle Type
    Brake Type
    Brakes Actuation
    Parking Brake    		 Straddle with epicyclic reduction
    Oil immersed, multi-disc
    Mechanical
    Hand Lever Operated
        MF 260 INSTRUMENTATION:


    Gauges



    Warning Lights



    		 Tachometer, Hour meter, Fuel Level, Battery condition & water temperature

    Direction Indicators, Electric Charge, Head Light main beam, Low engine, Oil Pressure, Brake Lights
        MF 260 TYRES:
    Front

    Rear

    		 7.50 – 16 (6PR) Pressed Wheels

    14.9/13 – 28 (6PR) Pressed Wheels
        MF 260 TRACK ADJUSTMENT:
    Front
    Rear    		 1346-1854 mm
    1423-2134 mm
        MF 260 WEIGHT AND DIMENSIONS:
    Weight:
    Gross WeightDimension:
    Wheel Base
    Overall Length
    Overall Width MinimumHeight:
    – Over Exhaust
    – Over Steering WheelTurning Circle:
    – With Brakes
    – With out BrakesGround Clearance:    		 1890 kg

    1892 mm
    3260 mm
    1753 mm

    2145 mm
    1410 mm

    5970 mm
    6700 mm

    338 mm
        MF 260 CAPACITIES:
    Fuel Tank
    Engine Sump
    Cooling System
    Hydraulic System
    Steering Box
    Oil bath air cleaner    		 47.5 liters
    6.8 liters
    10.2 liters
    33.0 liters
    0.9 liters
    0.5 liters
